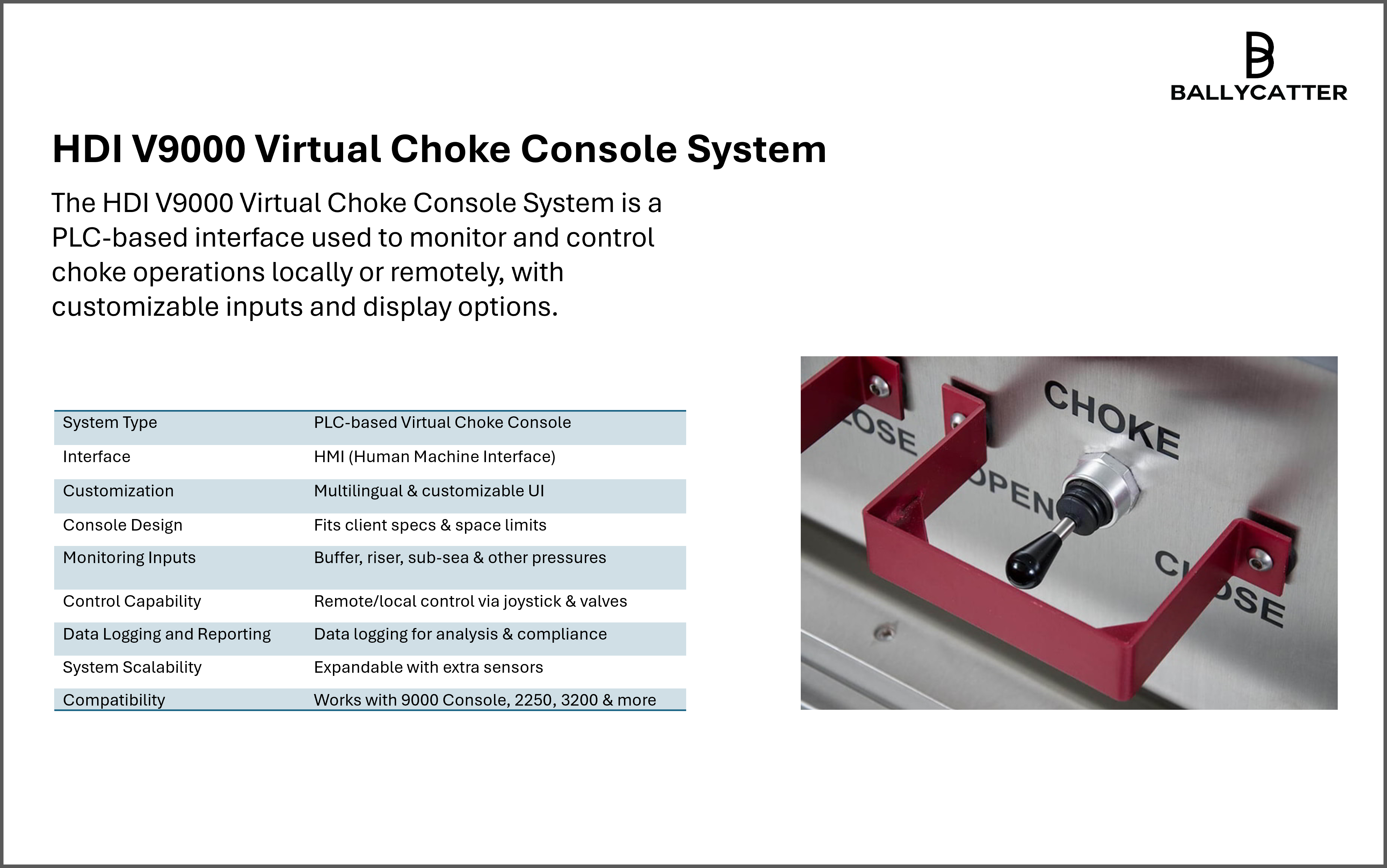

The HDI V9000 Virtual Choke Console System is a PLC-based interface used to monitor and control choke operations locally or remotely, with customizable inputs and display options.

Executive Summary

The HDI V9000 Virtual Choke Console System is a digital control and monitoring platform used in oil and gas operations to manage choke valves. It provides real-time visualization and control of choke positions, allowing operators to safely adjust flow rates both locally and remotely. The system integrates with existing choke consoles and other monitoring equipment, offering a centralized interface that improves operational efficiency and safety on drilling rigs and production sites.

Technical Specifications

System Type PLC-based Virtual Choke Console
Interface HMI (Human Machine Interface)
Customization Multilingual & customizable UI
Console Design Fits client specs & space limits
Application Choke control for oil & gas operations
Monitoring Inputs Buffer, riser, sub-sea & other pressures
Control Capability Remote/local control via joystick & valves
Data Logging and Reporting Data logging for analysis & compliance
System Scalability Expandable with extra sensors
Compatibility Works with 9000 Console, 2250, 3200

Features and Benefits

  • PLC-based control system with customizable HMI interface.

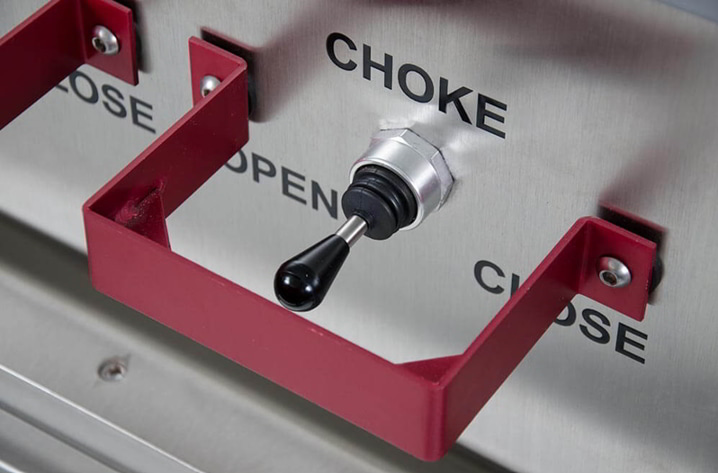

  • Electronic joysticks for precise choke valve operation.
  • Multi-language support.
  • Adaptability to different client requirements and complex well configurations.
  • Reduces reliance on pneumatic systems, lowering maintenance needs.

Download Attachments for free

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

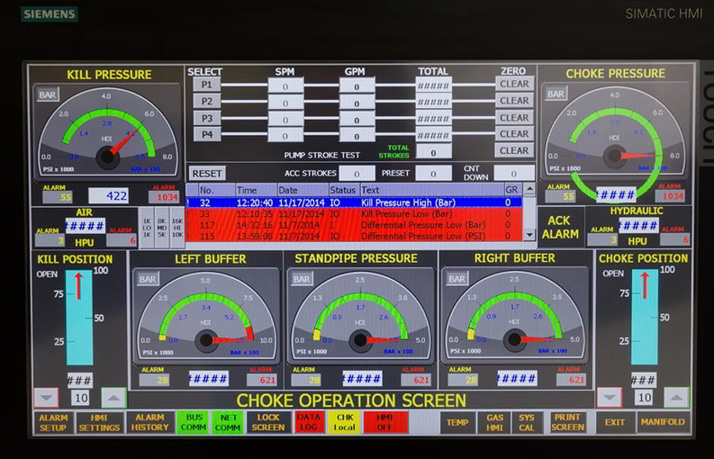

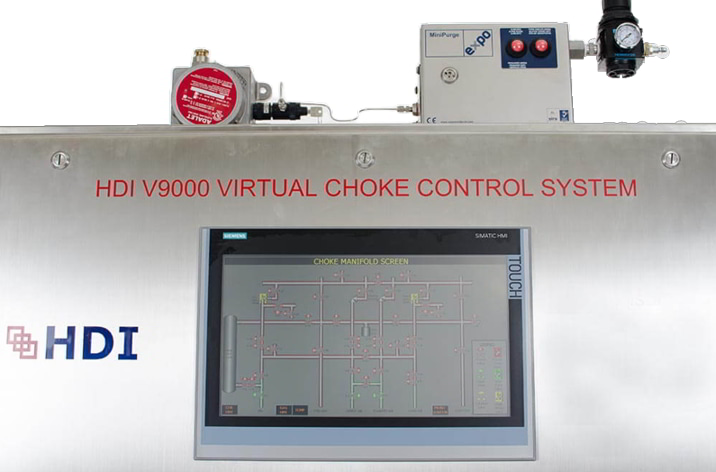

The HDI V9000 Virtual Choke Console System is a PLC-based control and monitoring platform that provides a digital representation of the traditional hydraulic choke console used in oil and gas operations. It integrates Human-Machine Interface (HMI) technology with electronic joysticks, enabling operators to monitor and control choke valves both locally and remotely.

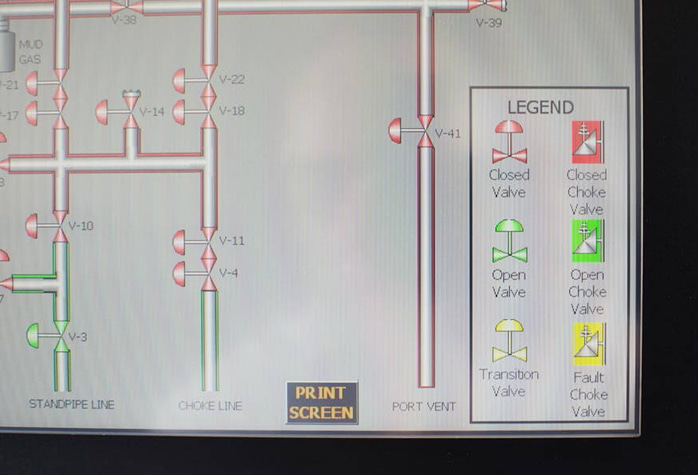

This system supports flexible configurations to meet client requirements, including various console layouts and customizable language options. It is designed to interface not only with standard choke control components but also with additional monitoring equipment such as gate valve position indicators, mud gas separator pressure monitors, and environmental sensors for riser and sub-sea temperatures.

By digitizing choke control, the V9000 enhances operational oversight, allowing for precise valve positioning and real-time status feedback. Its modular architecture permits scalability and adaptation to complex wellsite setups, supporting improved safety and efficiency. The system\'s data logging and reporting features facilitate compliance tracking and operational analysis, making it a comprehensive solution for modern well control management.
