HDI 9000 Choke Console System

Choke Console System

Also known as:

Drilling Choke Control Console

HDI 9000 Choke Console System

Choke Console System

Also known as:

Drilling Choke Control Console

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

3 Weeks

Note:

The HDI 9000 Choke Console System is a battery-powered control panel used to monitor and manage key well control functions like pressure, choke position, and pump strokes.

Executive Summary

The HDI 9000 Choke Console System is a standalone, battery-powered control panel designed for precise monitoring and management of critical well control parameters. It integrates multiple gauge systems to track pressure, choke position, pump strokes, and optional measurements like mud gas and temperature. The system is customizable to fit specific operational needs, ensuring reliable and independent performance without relying on rig power.

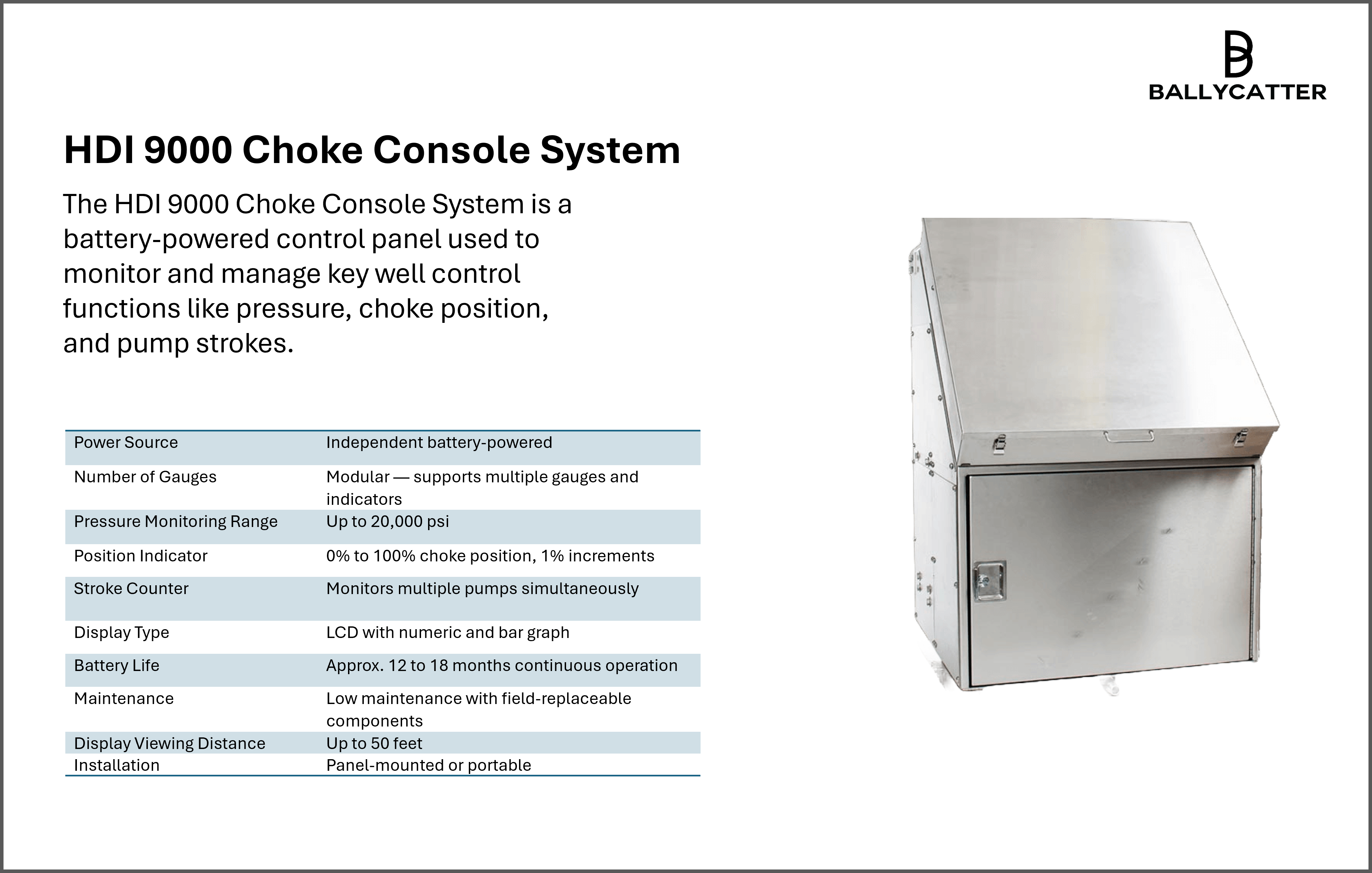

Technical Specifications

Power Source Independent battery-powered
Number of Gauges Modular — supports multiple gauges and indicators
Pressure Monitoring Range Up to 20,000 psi
Position Indicator 0% to 100% choke position, 1% increments
Stroke Counter Monitors multiple pumps simultaneously
Display Type LCD with numeric and bar graph
Maintenance Low maintenance with field-replaceable components
Battery Life 12 to 18 months continuous operation
Display Viewing Distance Up to 50 feet
Installation Panel-mounted or portable

Features and Benefits

  • Suitable for both land and offshore drilling operations.
  • Provides precise, real-time monitoring of critical well control parameters.
  • Operates independently from rig power, ensuring reliability during power loss.
  • Enhances safety through intrinsically safe design.
  • Communication outputs available for remote monitoring and integration.

Download Attachments for free

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

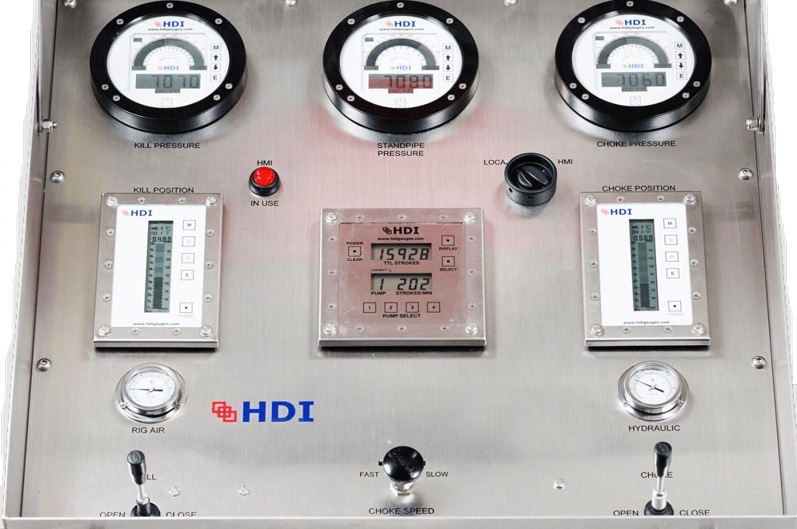

The HDI 9000 Choke Console System is an independently powered control console designed for critical well control operations in oil and gas drilling. It integrates multiple individual electronic gauge systems to provide precise monitoring of key parameters such as choke position, pump strokes, pressure, temperature, and mud gas separator status. This modular system typically includes pressure gauges, choke position indicators, pump stroke counters, mud gas separator monitors, and temperature gauges, all operating on a common platform.

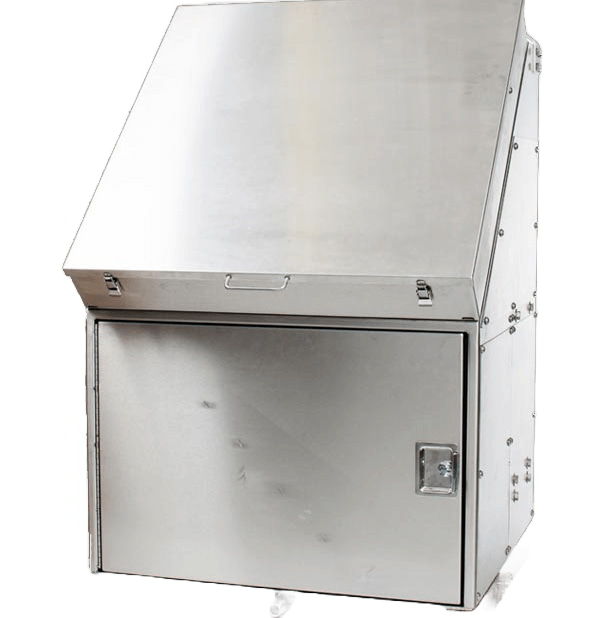

Powered by an internal battery pack, the 9000 Console operates independently from rig power, ensuring reliable performance even in power loss scenarios. The system is designed for harsh drilling environments, offering robust, intrinsically safe components housed in durable enclosures. Its modular nature allows customization to meet specific client requirements, including sensor types, communication outputs, and display configurations.

The console supports long cable runs—up to 1500 feet—to accommodate various rig layouts and sensor placements. Displays provide clear visibility from distances up to 50 feet, with low power consumption enabling battery life between 12 and 18 months under continuous operation. Maintenance is simplified through field-replaceable components and minimal calibration needs.

Overall, the 9000 Choke Console System enhances operational safety and efficiency by consolidating critical monitoring functions into a centralized, battery-powered, and customizable platform suitable for both land and offshore drilling environments.
