HDI 3200 MGS Differential Monitoring System

Mud Gas Monitor

Also known as:

Liquid Seal Pressure Monitor, Mud Gas Pressure Monitor, Mud Temperature Monitor, Mud Differential Monitor

HDI 3200 MGS Differential Monitoring System

Mud Gas Monitor

Also known as:

Liquid Seal Pressure Monitor, Mud Gas Pressure Monitor, Mud Temperature Monitor, Mud Differential Monitor

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

3 Weeks

Note:

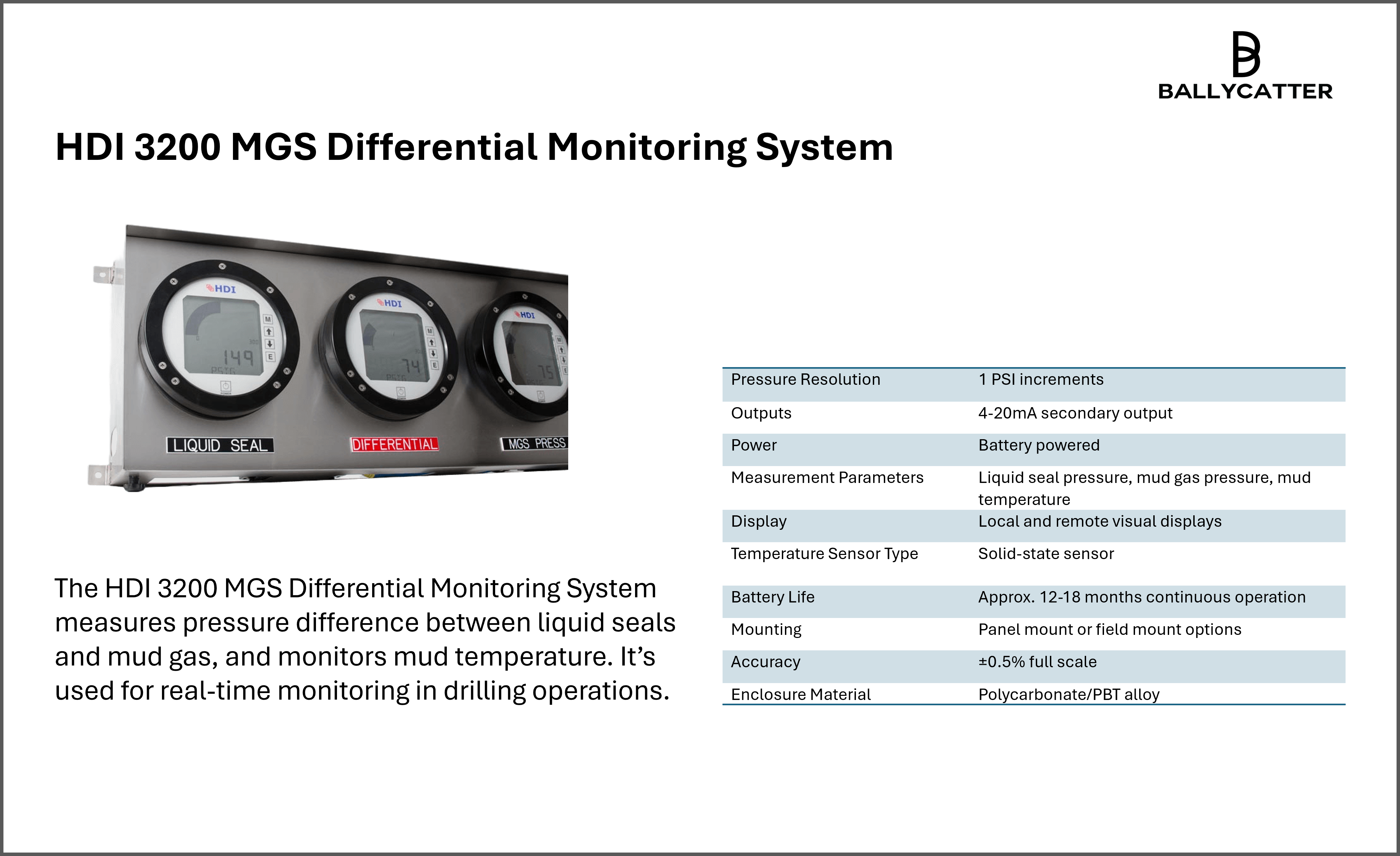

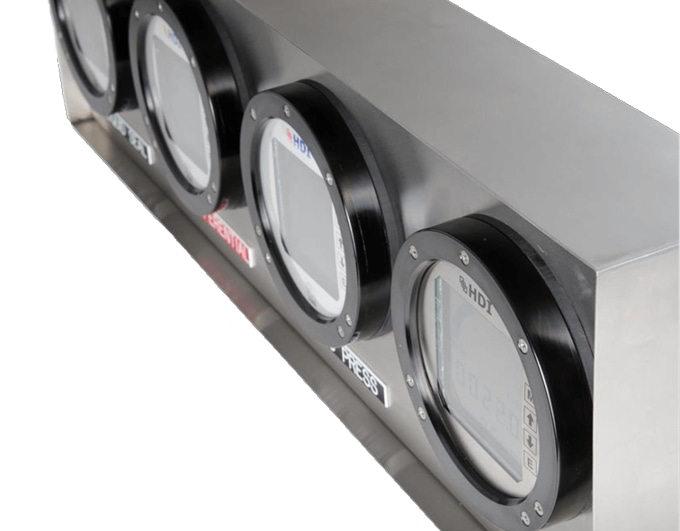

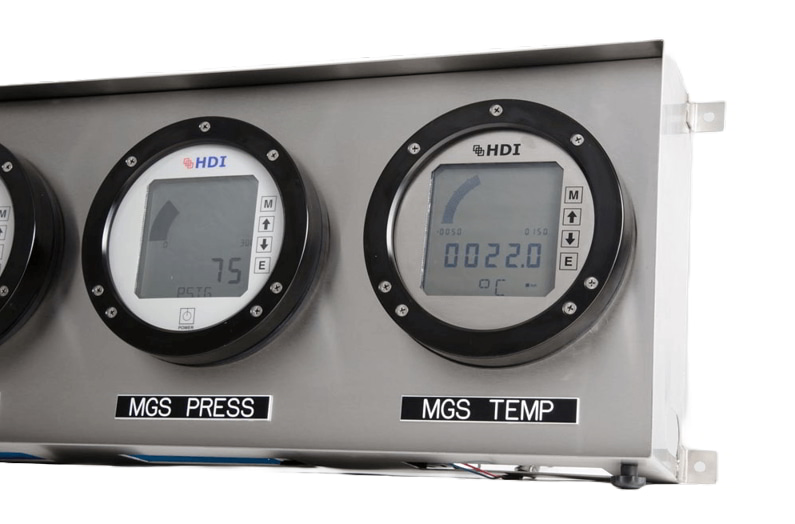

The HDI 3200 MGS Differential Monitoring System measures pressure difference between liquid seals and mud gas, and monitors mud temperature. It’s used for real-time monitoring in drilling operations.

Executive Summary

The HDI 3200 MGS Differential Monitoring System is named for its role in Mud Gas Separator (MGS) applications. It monitors the differential pressure between the liquid seal and mud gas, along with mud temperature, providing critical data to ensure safe and effective well control during drilling. This battery-powered system offers accurate readings, supports local and remote displays, and provides 4-20mA output for integration with control systems.

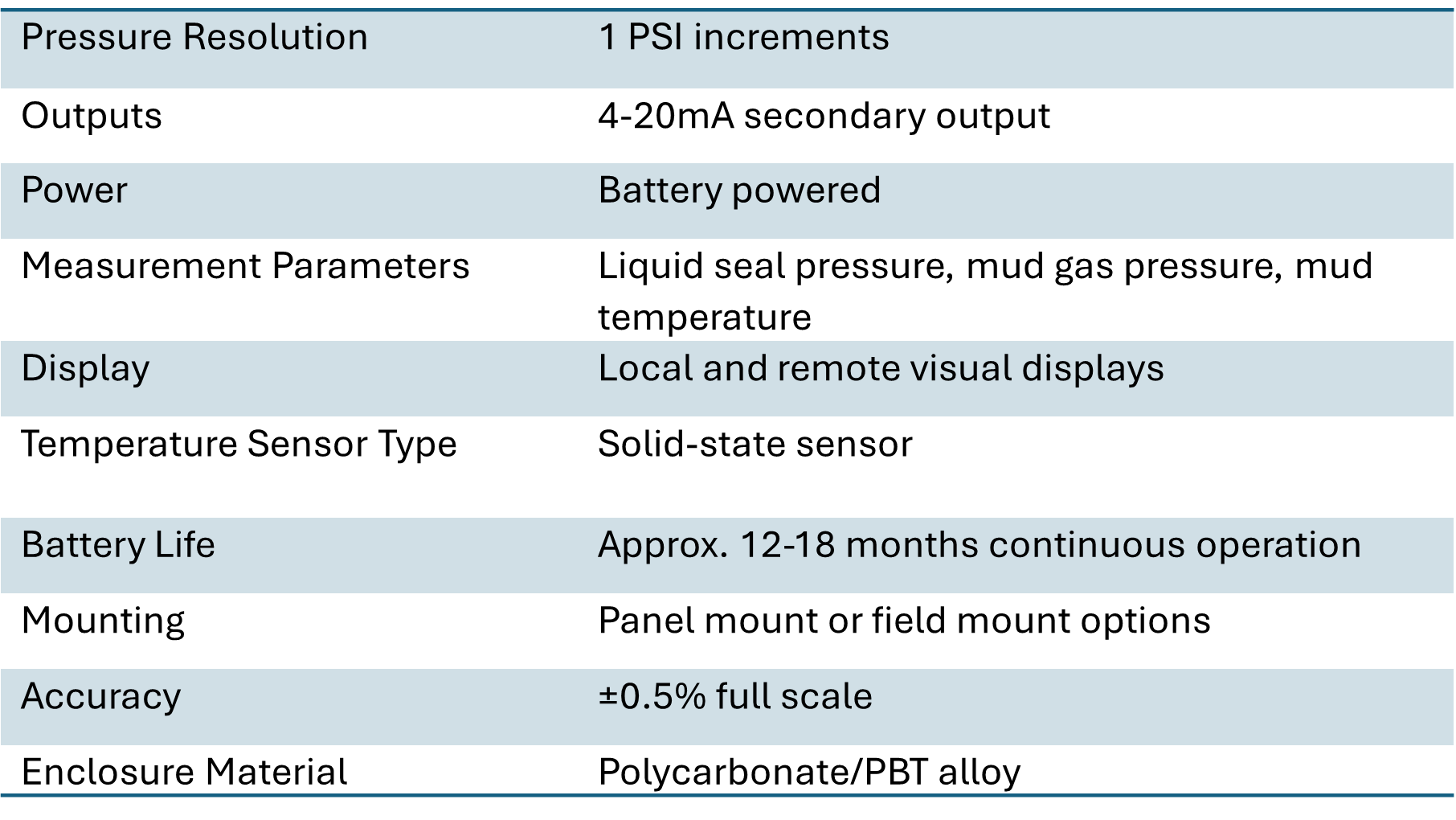

Technical Specifications

Pressure Resolution 1 PSI increments
Outputs 4-20mA secondary output
Power Battery powered
Measurement Parameters Seal pressure, gas pressure, temperature
Display Local and remote visual displays
Temperature Sensor Type Solid-state sensor
Battery Life Approx. 12-18 months continuous operation
Mounting Panel mount or field mount options
Accuracy ±0.5% full scale
Enclosure Material Polycarbonate/PBT alloy

Features and Benefits

  • Measures differential pressure between liquid seal and mud gas pressure.
  • Pressure readings in 1 PSI increments.
  • 4-20mA secondary output for integration with local or remote displays.
  • Compact and modular design for easy installation and maintenance.
  • Helps prevent equipment damage by detecting pressure imbalances early.

Download Attachments for free

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The HDI 3200 MGS Differential Monitoring System is a battery-powered, stand-alone device designed to monitor critical pressures and temperature in Mud Gas Separator operations within oil and gas drilling environments. It measures and displays the differential pressure between the liquid seal and mud gas pressure, along with monitoring the mud temperature. These measurements are essential for maintaining safe and efficient separator function, ensuring proper gas-liquid separation, and preventing equipment damage or hazardous conditions.

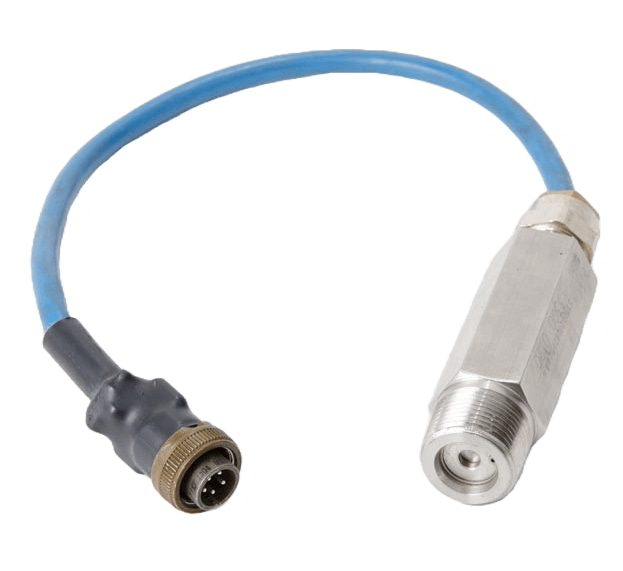

The system uses accurate and reliable pressure and temperature gauges, with pressure readings displayed in 1 PSI increments. It supports alternate engineering units to meet user preferences or site requirements and provides a 4-20mA output for integration with local or remote monitoring and control systems.

The enclosure is made of a durable polycarbonate/PBT alloy that is impact-resistant and UV stabilized, suitable for harsh field conditions including exposure to sunlight, moisture, and rough handling. Its compact, modular design allows for easy installation and maintenance.

The 3200 MGS Differential Monitoring System is essential in drilling operations for continuously monitoring pressure differences and temperature within Mud Gas Separators. This helps ensure the separator is functioning correctly by preventing gas or liquid buildup that could lead to equipment damage or unsafe conditions. By providing real-time data, the system supports safer drilling processes, reduces downtime, and helps maintain optimal performance in challenging well conditions.
