Detailed Description

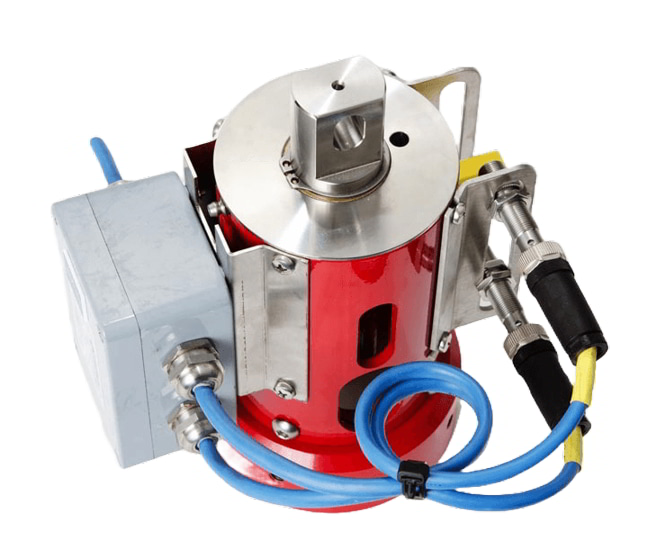

The HDI 2250 Valve Position Indicator System provides a reliable method to monitor the open or closed status of manual and hydraulically operated gate valves on choke manifolds. It offers two modes of position verification: a clear visual indicator mounted directly on the valve, and an electronic signal transmitted remotely to control rooms or monitoring systems. This dual feedback delivers real-time valve position information both locally and from a distance, enhancing operational control and safety.

The system is compatible with a wide range of rising and non-rising stem gate valves from various manufacturers, adding position monitoring without compromising valve integrity or certification. An adapter enables installation on valves that lack built-in position feedback. The sensor is an inductive Namur type housed within a rugged 316 stainless steel case, engineered for hazardous oilfield environments. It operates on a 5 to 25 volts DC power supply, making it suitable for integration with most industrial control systems.

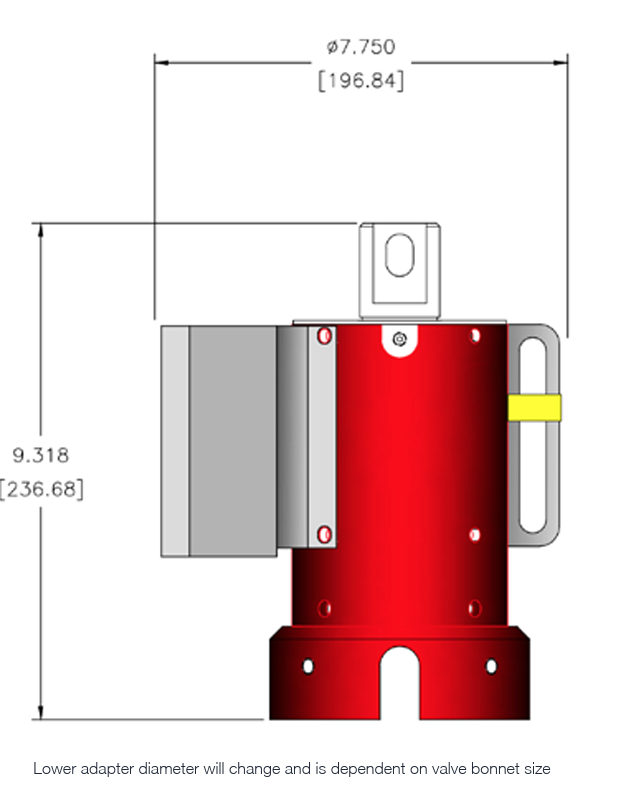

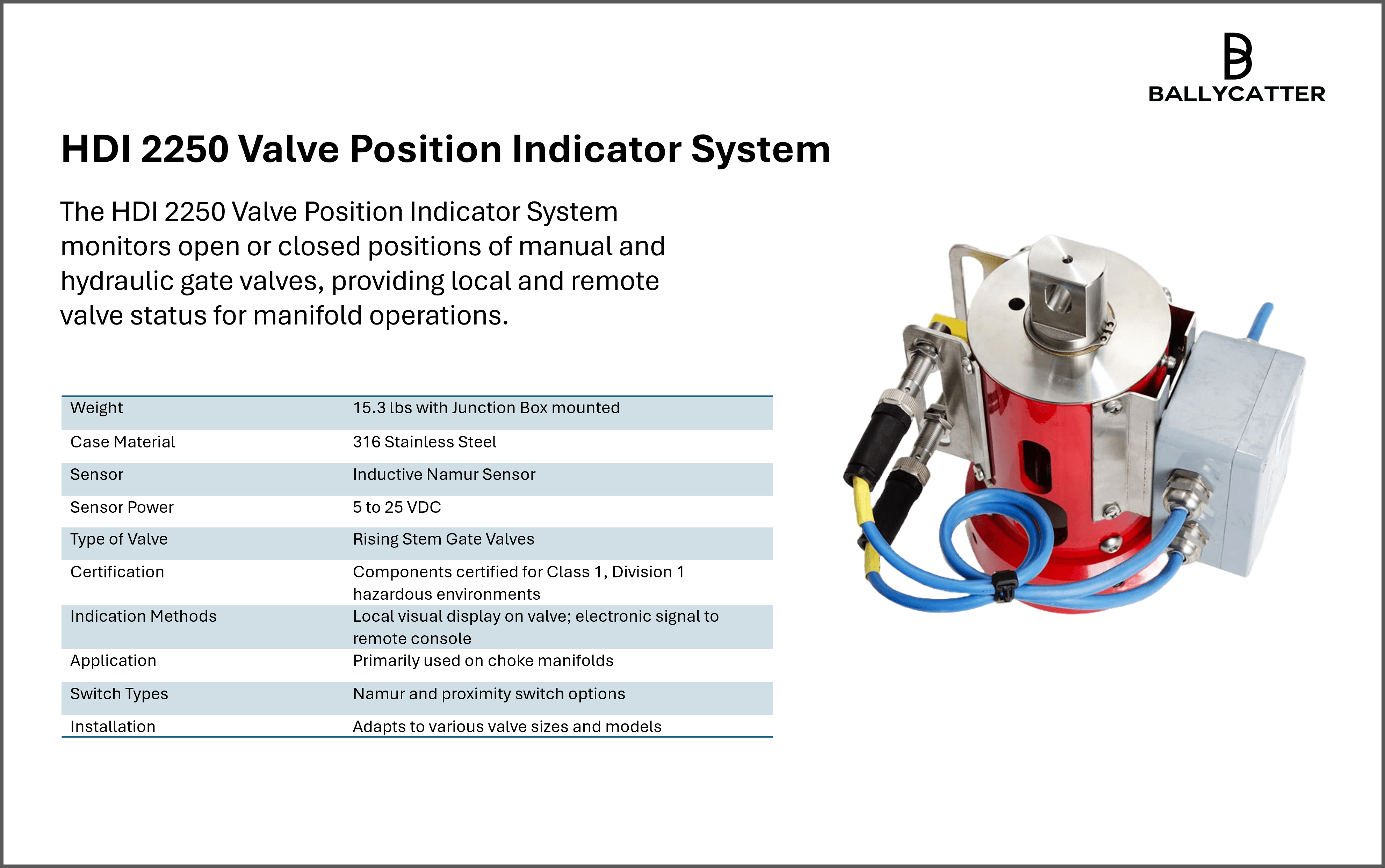

Weighing 15.3 pounds with the junction box mounted, the 2250 is built for durability and long-term performance in demanding onshore and offshore conditions. Once installed, it requires minimal maintenance, reducing operational downtime.

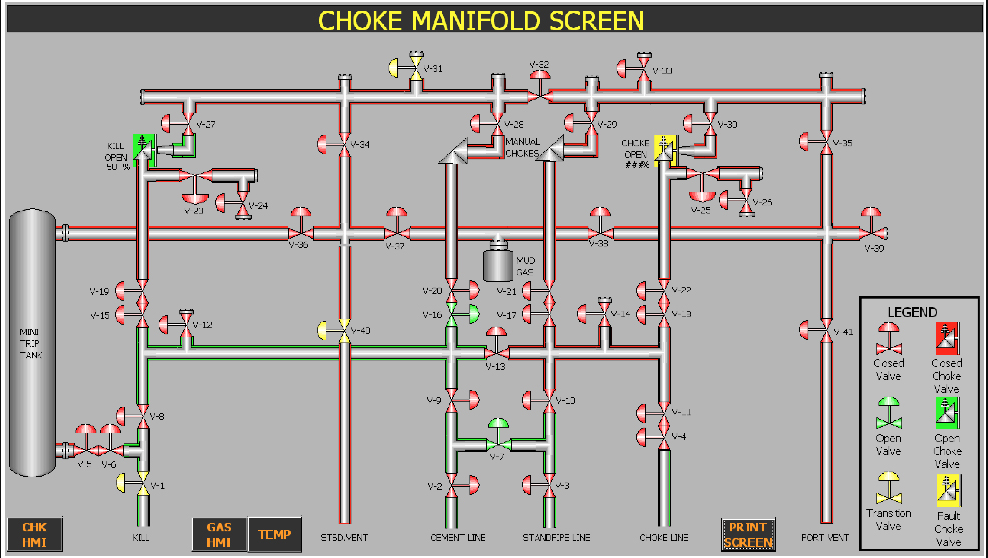

The system connects easily to local displays and remote monitoring platforms, offering a comprehensive view of valve positions across the manifold. It supports both Namur and proximity sensors, providing flexibility to meet different installation requirements.

The 2250 stands out for its ability to retrofit manual valves without modification, its robust construction for harsh environments, and dual visual and electronic position reporting. These features make it a practical, dependable choice for improving safety and operational awareness in oil and gas valve management.
