Detailed Description

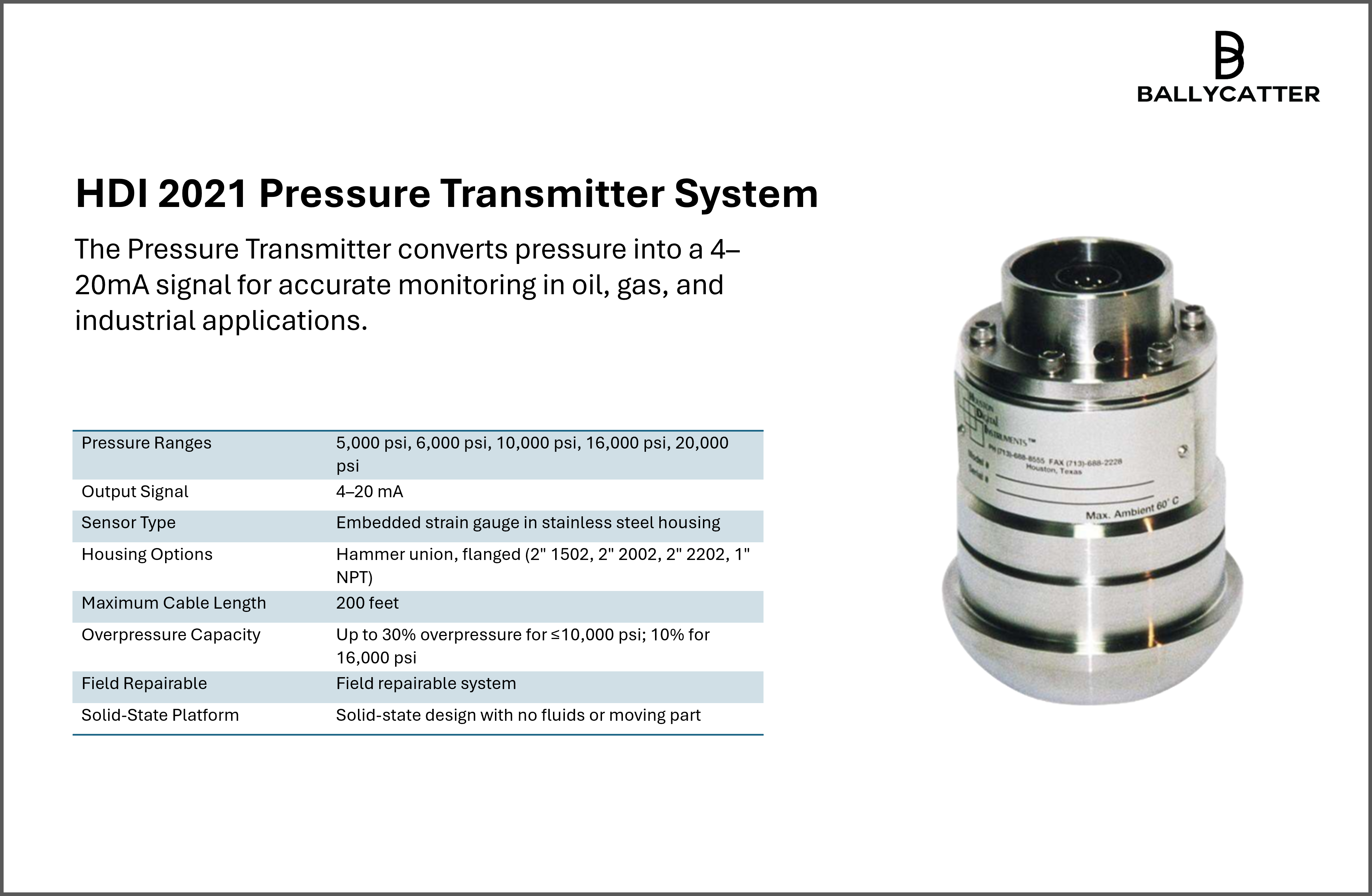

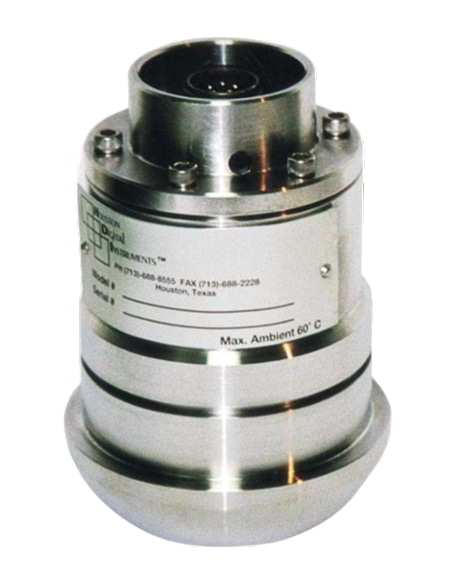

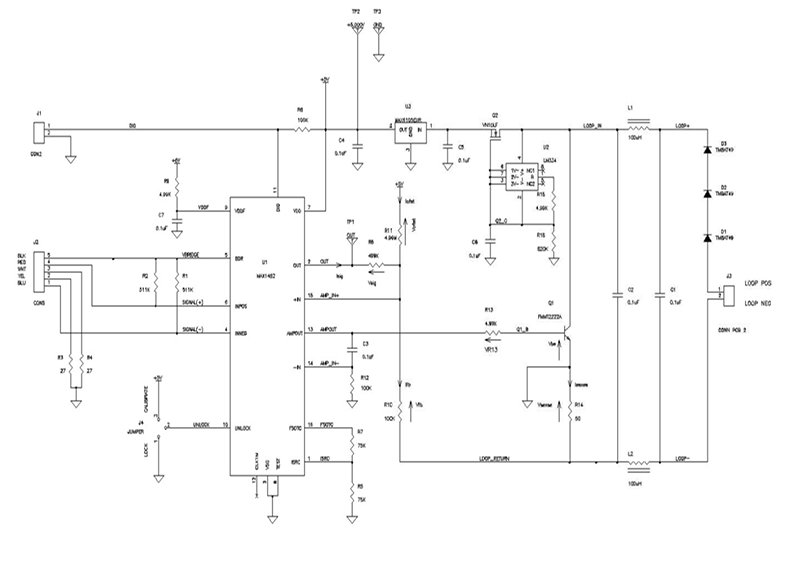

The HDI 2021 Pressure Transmitter System is an electronic device designed to measure pressure accurately and convert it into a standardized 4–20 mA electrical signal for monitoring and control. It consists of a strain gauge sensor embedded in a stainless-steel housing and a transmitter assembly that processes the sensor signal. This system is widely used in oil and gas operations to provide precise, real-time pressure data essential for safe and efficient wellhead monitoring, pump and compressor control, manifold pressure tracking, and other critical process points.

In typical oilfield applications, the transmitter measures pressure at locations such as wellheads, flowlines, separators, and pumps to ensure that equipment operates within safe pressure limits, preventing failures and optimizing production. The 4–20 mA output enables easy integration with control systems, remote displays, data loggers, and automated safety shutdowns, supporting operational decisions and regulatory compliance.

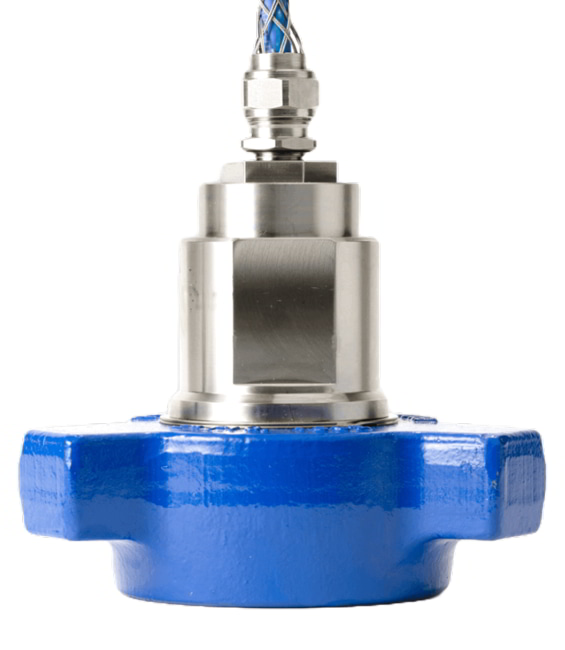

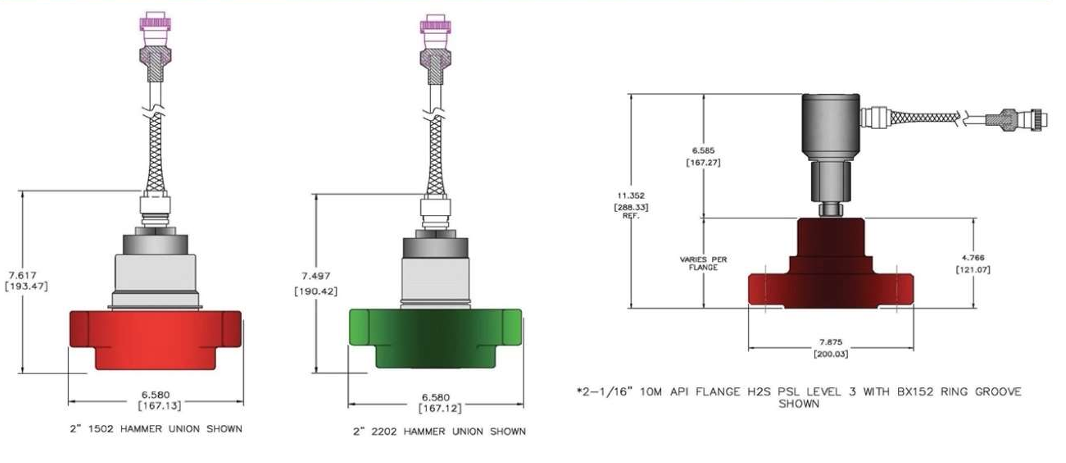

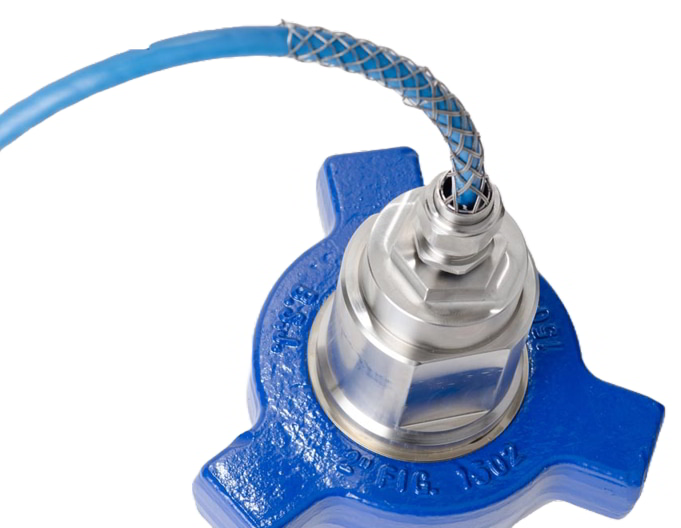

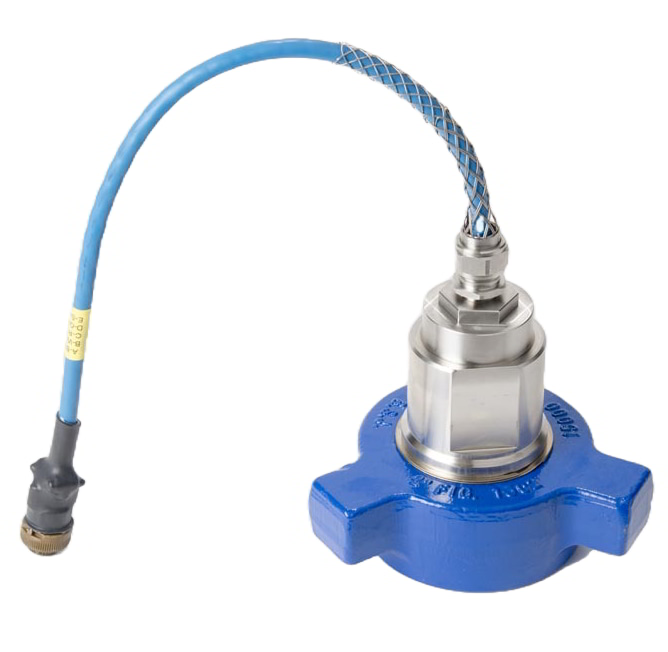

The 2021 system supports pressure ranges from 5,000 psi to 20,000 psi, with overpressure protection allowing up to 30% above rated pressure for lower ranges, and 10% for higher ranges. It offers multiple housing options including hammer unions and various flanged connections to fit existing infrastructure. The sensor uses a high-quality strain gauge design with a robust stainless-steel case to ensure durability in harsh field conditions. A shielded instrument cable (up to 200 feet recommended) connects the sensor to the transmitter, minimizing electrical noise for reliable data transmission. The system is field repairable and designed with no moving parts or fluids, reducing maintenance needs and enhancing reliability.

The 2021 Pressure Transmitter System delivers accurate, dependable pressure measurement critical for monitoring and controlling high-pressure equipment in oil and gas operations, helping to maintain safety, protect assets, and improve production efficiency.
