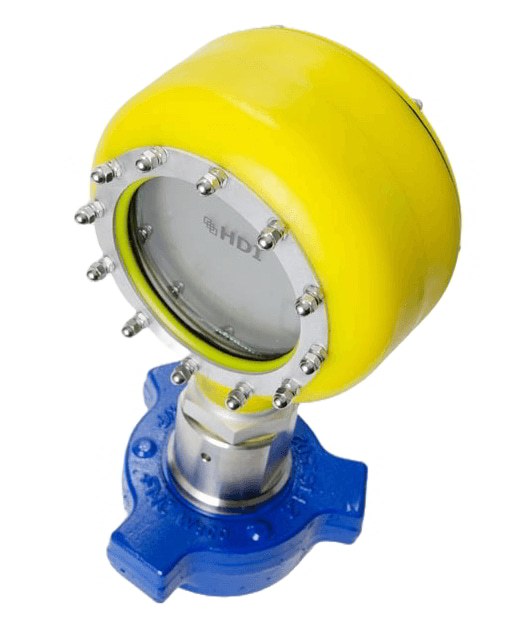

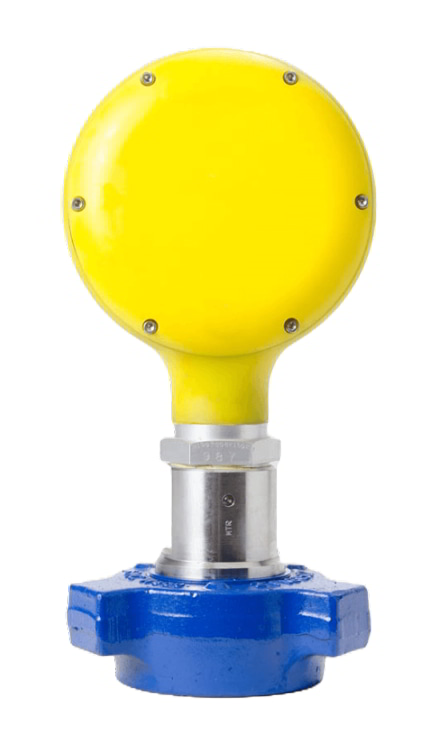

HDI 1000P Pressure Gauge System

Pressure Gauge

Also known as:

Rig Pressure Gauge

HDI 1000P Pressure Gauge System

Pressure Gauge

Also known as:

Rig Pressure Gauge

Buy

In Stock

Manufacturer

Price:

 Request for Quote

Shipping:

Air freight

Delivery Time:

3 Weeks

Note:

HDI 1000P is a solid-state pressure gauge for reliable, accurate monitoring in tough industrial environments.

Executive Summary

The HDI 1000P Pressure Gauge System is a solid-state, battery-powered electronic pressure gauge designed to monitor fluid and gas pressure in demanding oil and gas environments. It replaces traditional fluid-filled gauges with a reliable, maintenance-free digital system that provides both numerical and analog bar graph readouts.

The system is commonly used in applications such as high-pressure pumping, well control, and manifold monitoring, where vibration and harsh conditions can affect conventional gauges. With no fluids, moving parts, or need for calibration, the 1000P offers a consistent, accurate solution that reduces downtime and enhances operational safety. Its compact design and straightforward installation make it a practical choice for field operations that require dependable pressure monitoring over time.

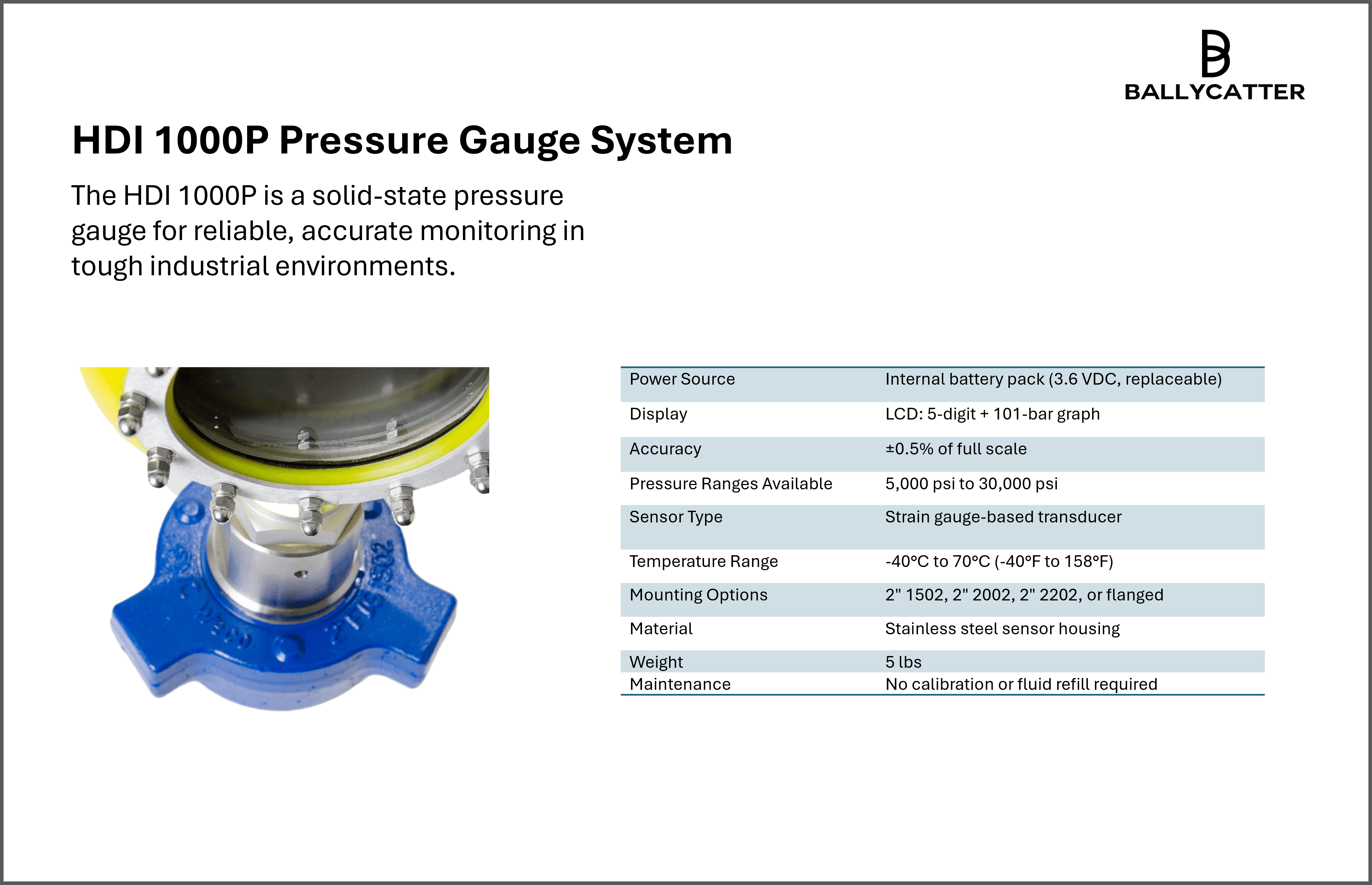

Technical Specifications

Power Source Internal battery pack (3.6 VDC, replaceable)

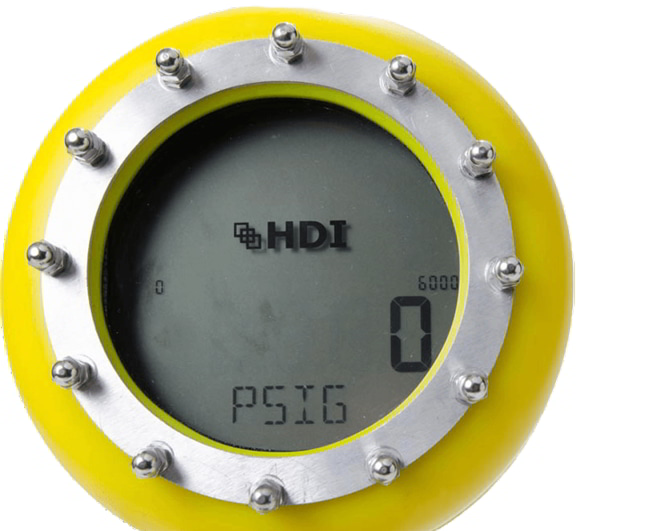

Display LCD: 5-digit + 101-bar graph
Accuracy ±0.5% of full scale
Pressure Ranges Available 5,000 psi to 30,000 psi
Sensor Type Strain gauge-based transducer
Temperature Range -40°C to 70°C (-40°F to 158°F)
Mounting Options 2" 1502, 2" 2002, 2" 2202, or flanged
Material Stainless steel sensor housing
Weight 5 lbs
Maintenance No calibration or fluid refill required

Features and Benefits

  • Pressure range options from 5,000 psi to 30,000 psi.
  • Intrinsically safe for hazardous environments.
  • Field-repairable and maintenance-friendly.
  • Easy-to-read display improves operator decision-making.
  • Durable for long-term use in rugged land or offshore conditions.

Download Attachments for free

Print or Share

Do you need information for the team or a client? Download these page to add your dossier.

Email Page

Send an email with the link to this page. It's a great way to share information.

Detailed Description

The HDI 1000P Pressure Gauge System is a battery-powered, intrinsically safe electronic gauge used to monitor high-pressure systems in oil and gas operations. It measures pressure using a strain gauge sensor and provides real-time readings on a digital display with both numeric and bar graph formats. Common applications include choke manifolds, cementing units, coiled tubing, and high-pressure pumping systems.

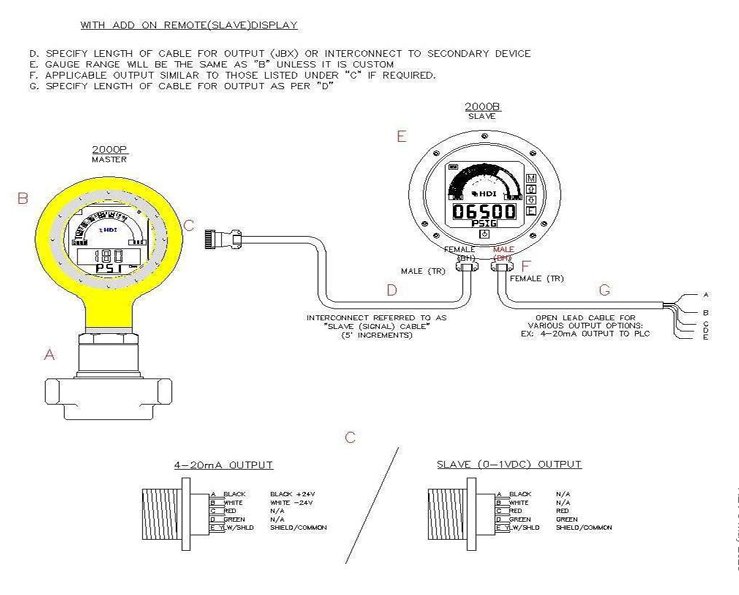

With pressure ranges available from 5,000 psi up to 30,000 psi, the 1000P is suitable for demanding environments. It offers ±0.5% full-scale accuracy, and optional 4-20mA or 0–1 VDC outputs for integration with PLCs or remote monitoring systems. The unit is housed in a sealed stainless steel enclosure and built to perform reliably in harsh, high-vibration field conditions.


Designed for ease of use, the 1000P includes a field-replaceable battery pack and supports a range of connection types such as 2" 1502, 2002, 2202, or flanged. Its solid-state platform minimizes maintenance and ensures consistent performance over time, making it a dependable tool for critical pressure monitoring tasks.

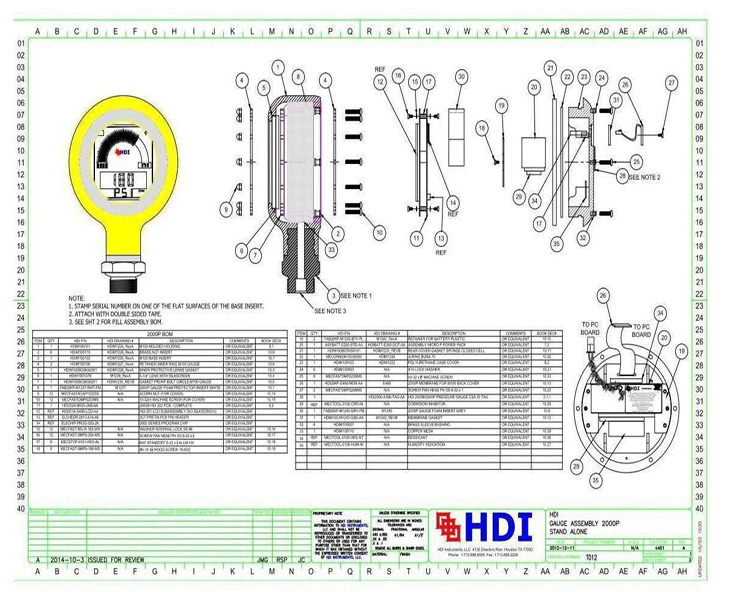

Engineering Data
