Detailed Description

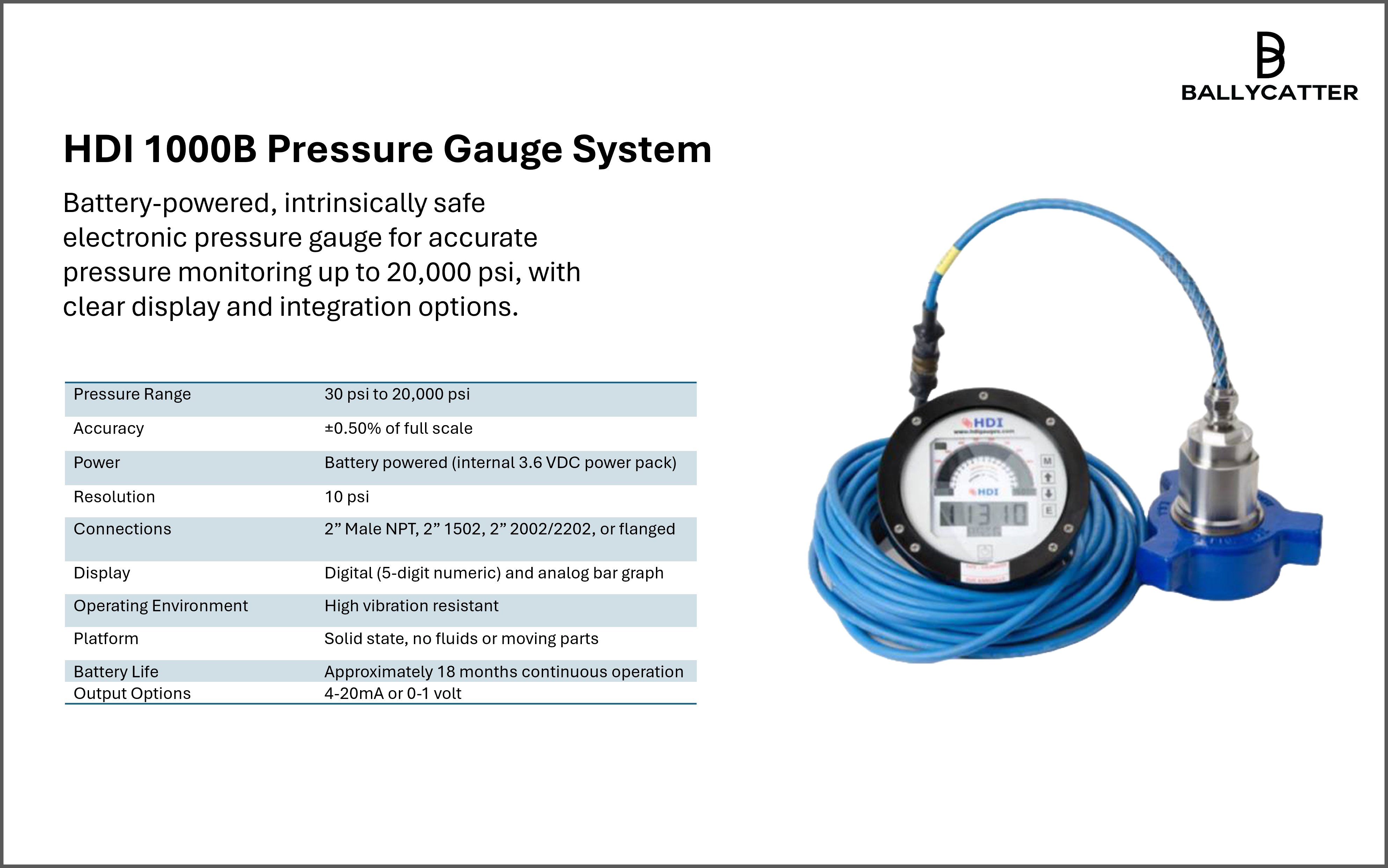

The HDI 1000B Pressure Gauge System is an intrinsically safe, battery-powered, solid-state electronic pressure gauge designed for accurate and reliable pressure measurement in demanding industrial environments. It measures pressures ranging from 30 psi up to 20,000 psi with an accuracy of ±0.50% of full scale. The system features a durable design with no fluids or moving parts, reducing maintenance requirements and improving long-term reliability.

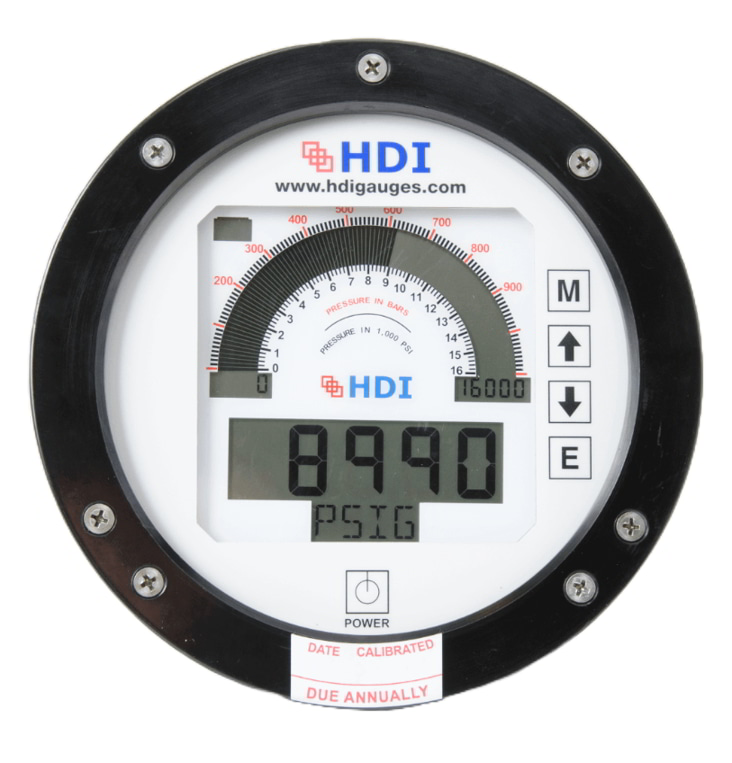

The gauge includes a clear liquid crystal display (LCD) that combines a five-digit numeric readout for precise pressure values with a 101-segment analog bar graph for quick trend visualization. The display is easily readable in various lighting conditions and includes a low battery indicator to ensure continuous operation.

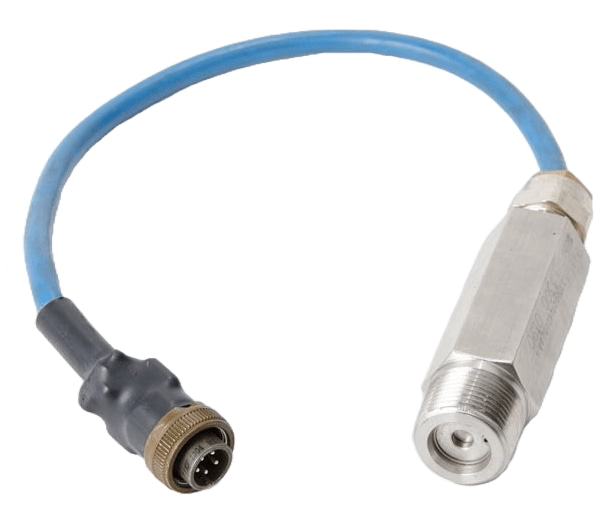

The 1000B system is modular, comprising a gauge display, inline cable, and sensor assembly. This design allows the display to be positioned close to or remotely from the pressure measurement point, providing flexibility in installation. The system supports multiple connection types including 2” Male NPT, 2” 1502, 2” 2002/2202, or flanged connections to fit different piping standards.

Power is supplied by a replaceable internal 3.6 VDC battery pack, which typically lasts up to 18 months during continuous operation. The gauge system is designed to retain calibration and settings during battery changes or power interruptions, enhancing reliability in field use.

For integration with control systems, the 1000B offers optional 4-20 mA or 0-1 V outputs, enabling remote monitoring, data logging, or connection to PLCs and chart recorders. The system is built to withstand high vibration environments, making it suitable for offshore, drilling, and other heavy industrial applications.

Overall, the 1000B Pressure Gauge System provides a precise, low-maintenance, and versatile solution for pressure measurement needs where safety, accuracy, and durability are critical.
